Description

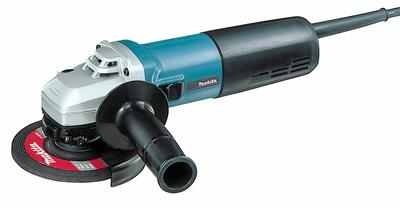

Makita 9564 4-1/2 variable speed angle grinder
st0135-9564cv
Makita 9564cv variable speed sander/grinder that is good for using with the optional 4 inch Osborn nylon bristle buffing brushes (use at lowest speed setting).
- SJS – Super Joint System Helps Prevent Kickback
- No Load Speed 2,800-10,500
- 12 AMP (120V)
This is a professional quality 12 amp, variable speed angle grinder that should last for years to come. Suitable for grinding, sanding, and using nylon bristle brushes, such as the 4 inch diameter Osborne.
Features:
- 5 stage variable speed control dial for matching the RPM to the work
- Improved 12 AMP motor design for increased output power in a more compact tool
- Larger and improved carbon brush material for longer tool life
- Electronic limiter stops the motor and prevents accidental motor overload and burnout
- “Tool-less” wheel guard adjustment for easy clamping
- Labyrinth construction seals and protects the motor and bearings from dust and debris by creating a complex set of channels.
Standard Equipment:
- 4-1/2″ Grinding Wheel
- Lock Nut Wrench
- Side Handle
- Lock Nut
- Inner Flange
- Wheel Guard
- Parts Breakdown
- Owner’s Manual
Specifications :
- Spindle Thread 5/8″ – 11 UNC
- Overall Length 11-3/4″
- Grinding Wheel 4-1/2″
- Wire Cup Brush 3″
- Sanding Disc 4-1/2″
- No Load RPM 2,800-10,500
- AMPS 12
- Spindle Thread (11 UNC) 5/8″
- Length 11-3/4″
Notes on Options for the Makita 9564 4-1/2″ variable speed angle grinder.
Osborn 4″ nylon bristle and Little Red buffing brushes are used at the lowest speed setting to clean up the ‘fuzzies’ left after pressure washing and smooth out many of the ‘grinder marks’ left when sanding.
We’ve heard reports that it’s best to run it for shorter periods of time…say 20 minutes, then onto another project until the tool cools down. The low setting is 2800rpm and the brushes do put a bit of a load on the tool at that high an rpm.
If you want to work continuously, try the 9227c
When ordering the backing pad and nut for the Makita 9564 4-1/2 variable speed angle grinder, you’ll need some Abrasive Discs.
