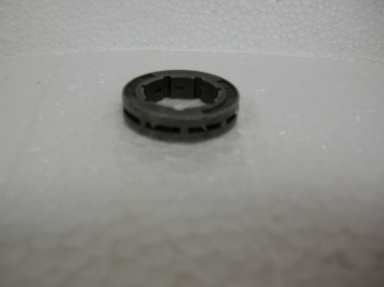

1/4 pitch rim style sprocket

$5.95

1/4 pitch rim style sprocket
ca0021-1/4-rim

1/4 pitch rim sprockets are used for carving with medium to medium small chainsaws.

Clear

Description

1/4 pitch rim style sprocket
ca0021-1/4-rim

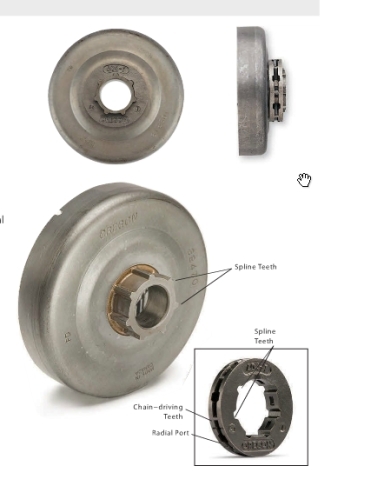

1/4 pitch rim sprockets fit most medium to medium small chainsaws…that are equipped with a center rim (floating rim) sprocket and clutch housing.

  • Rim sprockets are preferred by professionals over ‘spur’ sprockets as rim style ‘float’ on the splined hub, allowing the chain and sprocket to self aligned with the bar groove.
  • 9 tooth (grooves to drive teeth) around the edge.
  • Available in either Small or Standard…The majority of 1/4 pitch rim sprockets sold are for the Small shaft…when in doubt, this is the one to get.

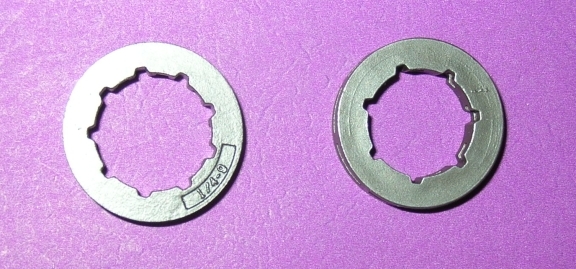

Small Spline Rim Sprocket: Shown on right in photo above. This is the most common by far.

  • 9 grooves around outer edge…where the drivers on your chain fit (sometimes called 9 tooth and/or ‘chain driving teeth’).
  • 7 interior splines…(you can count them in the photo above)…also called ‘spline driving teeth’.

Standard Spline Rim Sprocket: Shown on left in photo above.

  • 9 grooves around outer edge…where the drivers on your chain fit (sometimes called 9 tooth and/or ‘chain driving teeth’).
  • 9 interior splines…(you can count them in the photo above)…also called ‘spline driving teeth’.
