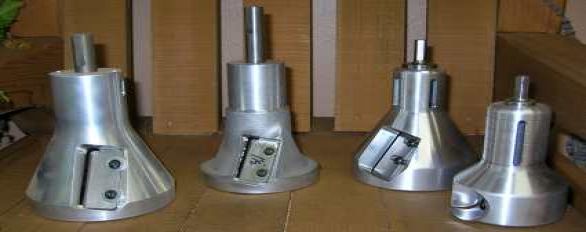

Tenon Cutters
Tenon Cutters are available in a Router powered style (LogMan) as well as the better known Drill powered style...e.g. NW, Barker, Lumberjack, EZ Tenon brands.
All brands of drill powered tenon cutters will work in our Drill Carriage and Clamping devices to allow you high volume capabilities in your log and rustic furniture building.
Notes on NW, Barker, Lumberjack Drill Powered tenon cutters.
- Larger sizes work best with a 3/4" drill.
- For any sort of production rustic furniture building we recommend using the Milwaukee Super Hole Shooter Drill with the Drill Carriage and Clamping Device.
- The Drill Carriage is preset to accept the Milwaukee Super Hole Shooter Drill "out of the box".
- Tenon lengths can be adjusted, (by moving the shaft in or out), and widths slightly adjusted by judicious movement of the blades (to accomodate variations in wood being drilled and the actual width of the drill bit being used).
High carbon steel blades in both the single blade style, (available only in the some Barker models), and the double blade style are re-sharpenable many times and should last for several hundred cuts between sharpenings in good clean wood.
The E-Z Tenon Maker is a smaller tool that allows you to use a battery pack drill as the power source and a wood vise to clamp the wood. Slower if doing high production...great if doing a project now and again
EZ Adjustable tenon cutter
st0101-ez-tenon
The EZ tenon cutter is a handy all-in-one adjustable tenon maker for making log and rustic furniture, that can cut from 7/8" up to 2-1/2" diameter tenons with a 45 degree shoulder
Logman Tenon Maker Original
st0098-lm-basic
LogMan Basic is powered by your router.
Basic unit comes with 2 woodguides to make 4 diameters of tenons.
Makes a radius shoulder tenon rather than the 60 degree common to many drill powered units.
NW tenon cutter
st0100nw
Professional quality for long lasting use. Made of high-grade cast aluminum.
Double cutter blades.

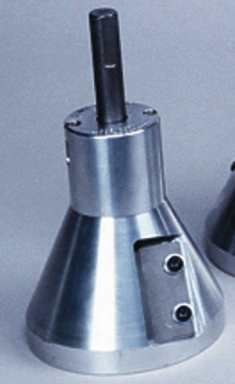

Barker tenon cutter
st0100-barker
Heavy duty design. Made of machined high-grade aluminum in either single or double blade styles.

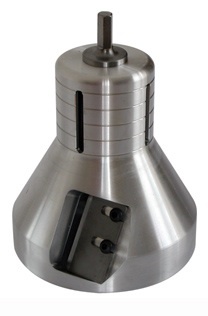

60 degree Lumberjack tenon cutter
St0098-LJ-60-degree
Industrial Series 60 Degree Tapered Shoulder Dual Blade Tenon Cutters are available in a wide range of sizes.
Radius (curved blade) tenon cutter
ST0098-LJ-Radius
Pro Series Radius shoulder tenon cutter.
* Machined from solid aircraft aluminum for maximum strength and light weight.
Lumberjack 90 degree
st0098-LJ-90-degree
90 Degree Flat Bottom Tenon Cutter
Replacement blades for NW. Set of 2
ST0105-blades-nw
Set of 2. Resharpenable
Radius blades for Lumberjack
st0098-lj-blades-radius
Replacement blades for TTR0750-TTR2000 Pro Series Tenon Cutters.
Taper countersink for use with60 degree tenon cutters
st0110-taper-countersink
Available in sizes from 3/4" to 3". Used to add a 60 degree bevel to mortise for tighter fit on Tenons.
